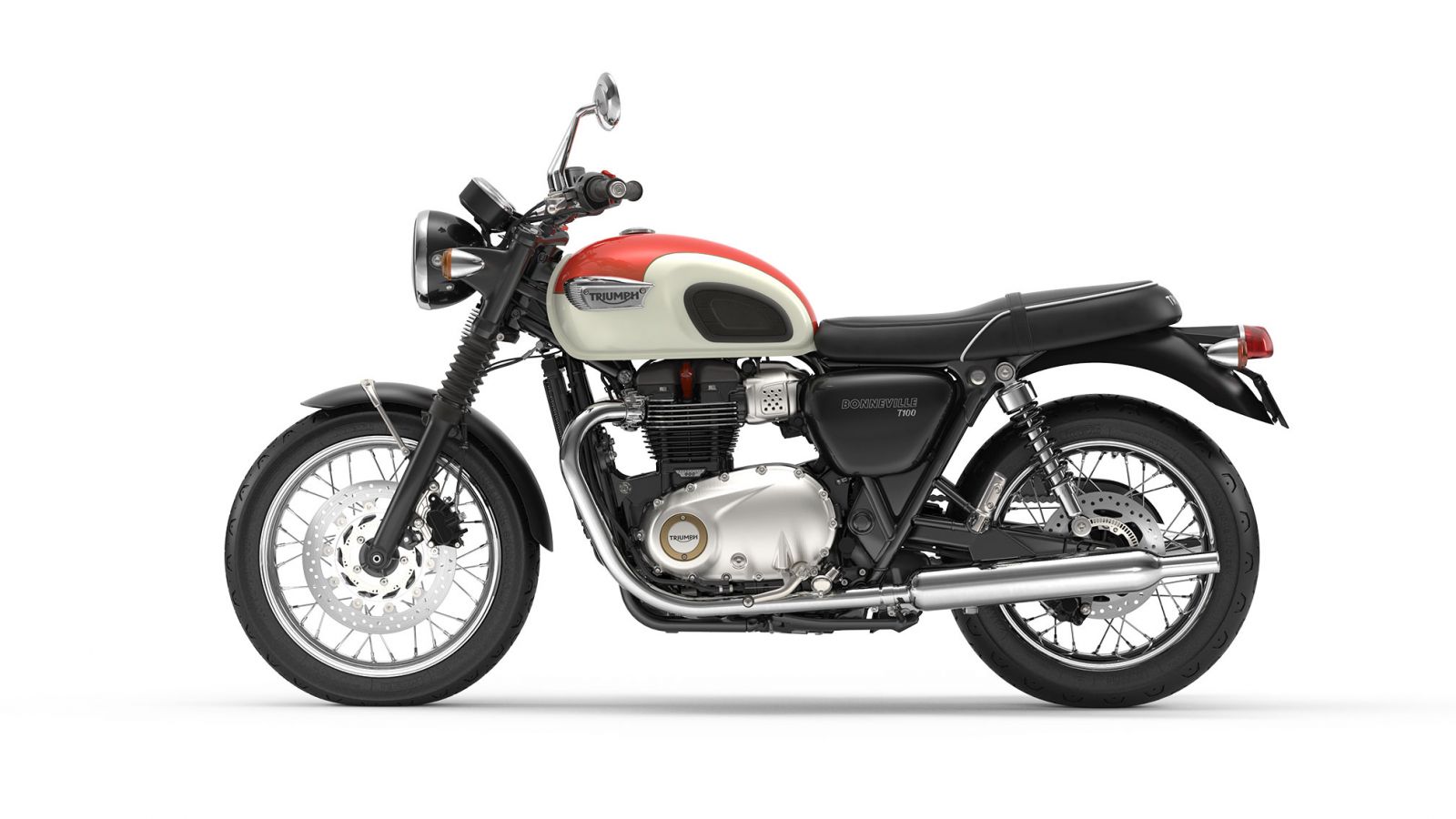

Triumph Bonneville T100 2017+

Customs Parts for the Triumph Bonneville Water cooled 2017+

Exhaust






Engine and transmission
Displacement: 900.00 ccm (54.92 cubic inches)
Engine type: Twin, four-stroke
Engine details: 360 degree firing interval
Power: 55.00 HP (40.1 kW)) @ 5900 RPM
Torque: 80.00 Nm (8.2 kgf-m or 59.0 ft.lbs) @ 3230 RPM
Compression: 10.5:1
Bore x stroke: 84.6 x 80.0 mm (3.3 x 3.1 inches)
Fuel system: Injection. Multipoint sequential electronic fuel injection
Fuel control: Double Overhead Cams/Twin Cam (DOHC)
Ignition: Digital-inductive type via engine management system
Cooling system: Air
Gearbox: 5-speed
Transmission type,
final drive:
Chain
Clutch: Wet, multi-plate assist clutch
Driveline: X ring chain. Primary drive: Gear.
Fuel consumption: 3.83 litres/100 km (26.1 km/l or 61.42 mpg)
Greenhouse gases: 88.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Exhaust system: Brushed stainless steel 2 into 2 exhaust system with twin silencers
Chassis, suspension, brakes and wheels
Frame type: Tubular steel twin cradle. Twin-sided, tubular steel swing arm.
Rake (fork angle): 25.5°
Trail: 104 mm (4.1 inches)
Front suspension: KYB 41mm forks
Front wheel travel: 120 mm (4.7 inches)
Rear suspension: KYB chromed spring twin shocks with adjustable preload
Rear wheel travel: 120 mm (4.7 inches)
Front tyre: 100/90-18
Rear tyre: 150/70-R17
Front brakes: Single disc. Nissin 2-piston floating caliper
Front brakes diameter: 310 mm (12.2 inches)
Rear brakes: Single disc. Nissin 2-piston floating caliper
Rear brakes diameter: 255 mm (10.0 inches)
Wheels: Wire spoked. Steel rims.
Physical measures and capacities
Weight incl. oil, gas, etc: 213.0 kg (469.6 pounds)
Seat height: 790 mm (31.1 inches) If adjustable, lowest setting.
Overall height: 1,100 mm (43.3 inches)
Overall length: 2,230 mm (87.8 inches)
Overall width: 715 mm (28.1 inches)
Wheelbase: 1,450 mm (57.1 inches)
Fuel capacity: 14.38 litres (3.80 gallons)
Oil capacity: 4.50 litres (0.30 quarts)
Other specifications
Color options: Jet black, white/blue, white/orange
Starter: Electric
Instruments: Analogue speedometer and tachometer with odometer and trip information
Factory warranty: 24 months unlimited milage


$579.00 $479.00

or 4 payments of $119.75 with Info

SKU: T0430656

Bonnie T100 T120 & S-TWIN 16-20 & S-CUP 17-18 Rally-Euro Touring Kit

$695.00 $595.00

or 4 payments of $148.75 with Info

SKU: LCSLAMMER

Aus Slammer Seat for the Bonneville 2017 onwards - Diamond Stitched

See Options

$699.00 $595.00

or 4 payments of $148.75 with Info

SKU: LCSLAMMER-RIB

Aus Slammer Seat for the Bonneville 2017 onwards - Ribbed

See Options

$329.00 $295.00

or 4 payments of $73.75 with Info

SKU: CBS004MEL008DDM012

Belair Tail Tidy for Triumph LC Models

$559.00 $459.00

or 4 payments of $114.75 with Info

SKU: T043EV22

Bonnie T100 T120 & S-TWIN 16-18 & S-CUP 17-20 EVO-22 Jet Stream Kit

See Options

$237.30

or 4 payments of $59.33 with Info

SKU: FS-303822

Brake fluid reservoir kit 45° - KIT

See Options

$79.00 $69.00

or 4 payments of $17.25 with Info

SKU: OCP_000X

Buzzsaw oil filler cap

See Options

$988.90

or 4 payments of $247.22 with Info

SKU: NH-HBS-705

Classic Chrome Silencers for the T100 & T120 2016 onwards

See Options

$499.95

or 4 payments of $124.99 with Info

SKU: FS-302305

Clip on diameter 41-25,4 mm for Triumph Classic

$1,295.00 $1,249.00

or 4 payments of $312.25 with Info

SKU: CONEDOM-2016

Cone Dominator Exhaust for 2016 + Models

See Options

$1,195.00 $1,149.00

or 4 payments of $287.25 with Info

SKU: CONE-Shorty2016

Cone Shorty Exhaust for 2016 + Models

See Options

$12.00 $11.00

or 4 payments of $2.75 with Info

SKU: ENG303

Copper Header Crush Gasket For Triumph Water Cooled Models

$320.00 $295.00

or 4 payments of $73.75 with Info

SKU: CBS004-MEL004-DDM012

Eldorado Tail Tidy for Triumph LC Models

$159.95

or 4 payments of $39.99 with Info

SKU: WH-HDMOVALR

MIRROR OVAL DIAMOND SHORT STEM - SOLD AS PAIR

$179.00 $149.00

or 4 payments of $37.25 with Info

SKU: FS-309027

Mobile and Navigator Supports for Triumph Classic - KIT

See Options

$799.50 $799.00

or 4 payments of $199.75 with Info

SKU: FS-301905K

Riser Block for the Street Scramber, Street Twin & Street Cup, T120, T100

See Options

$795.95

or 4 payments of $198.99 with Info

SKU: FS-301906

Riser Block for Triumph Bonneville T100/T120 2016 up

$2,195.00 $2,095.00

SKU: ZTPH071SSR

T100 2017+ 2>2 KIT with Oem Cat

$2,195.00 $2,095.00

SKU: ZTPH072SKR

T100 2017+ 2>2 KIT Without Cat

$702.00

or 4 payments of $175.50 with Info

SKU: FS-305314

Triumph Classic 2016 up rear Brembo caliper kit

$118.00

or 4 payments of $29.50 with Info

SKU: FS-308525

Triumph New Classic Front Axle Protector/Sliders

$69.00

or 4 payments of $17.25 with Info

SKU: LLEC-BT-Android

TUNE ECU OBD2 Wireless Bluetooth V1.5 Reader For Tune ECU

$495.00 $493.00

or 4 payments of $123.25 with Info

SKU: FS-088305

X-Pipe (de-cat) for Triumph Street Twin, Street Cup, Bonneville T100, Bonneville T120, Bobber, Thrux

$1,545.95

or 4 payments of $386.49 with Info

SKU: ZTPH061SSR

Zard N. 2 STEEL SILENCERS

See Options
